MMR

9-axis IMU and Environmental Sensor

The MetaMotionR (MMR) is a wearable device that offers real-time and continuous monitoring of motion and environmental sensor data.

The MMR includes free and open source APIs and App software for sensor data acquisition and for in-depth analysis and visualization.

Small. Rechargeable. Powerful

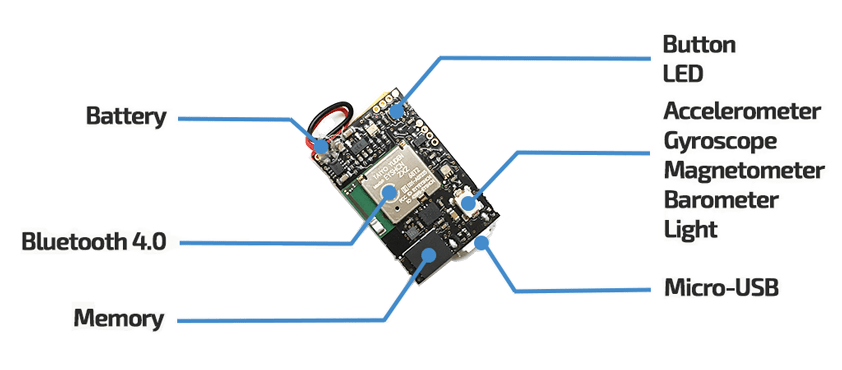

On-board sensors include a triple-axis gyroscope, accelerometer, and magnetometer, as well a barometric pressure sensor, ambient light sensor and humidity sensor.

Technical Specifications

Unobtrusive monitoring and clinical quality observation
Record in the lab or at home with no hassle. Obtain accurate and precise sensor data.

Weight:
Ultra lightweight at just 0.2oz

Synchronized timestamp:
Supports multiple devices simultaneously

Lipo Battery:
70-100mAH micro-USB rechargeable. Charging time: 2h

Splash Resistant Materials:
IP40 plastic case

Regulatory Compliance:
CE, FCC, IC, RoHS

Miniature form factor:
27mm × 27mm x 4mm in case

Low power consumption:
Sleep mode supports 6 months idle time

Usage modes:
Streaming mode: 8h-24h,
recording mode: 2h-48h

Data Transfer:
Bluetooth Low Energy Smart®

Flash Memory:
8MB NOR. Up to 1M data entries

Sensor Specification

Ideal for research, clinical studies, prototyping, POCs and products such as indoor navigation, gait analysis, gaming, drones, smart farming, fall prevention, patient monitoring, and robotics.

On-Board Sensors
GyroscopeRange: ± 125, ± 250, ± 500, ± 1000, ± 2000°/s
Resolution:16 bit
Sample Rate:0.001Hz – 100Hz stream – 800Hz log
AccelerometerRange:± 2, ± 4, ± 8, ± 16 g
Resolution:16bit
Sample Rate:0.001Hz – 100Hz stream – 800Hz log
MagnetometerRange:±1300μT (x,y-axis), ±2500μT (z-axis)
Resolution:0.3μT
Sample Rate:0.001Hz – 25Hz
Barometric PressureRange300 – 1100 hPa
Resolution:0.01 hPa ( < 10 cm)
Accuracy:~ ±1 hPa (abs), ± 0.12 hPa (±1 m – rel)
Sample Rate:0.001Hz – 50Hz
TemperatureRange:-40°C – 85°C
Resolution:0.01° C
Sample Rate:0.001Hz – 50Hz
Ambient LightRange:0.01 lux – 64k lux
Resolution:16bit
Sample Rate:0.001Hz – 50Hz
Analog and Digital Inputs
Channels:2 (with 4 additional SMP IOs under the board)
Range:0V to 3.1V
Resolution:10-bit
Auxiliary Serial Interface
Available:I2C and SPI
Voltage:3.0V
Memory and Peripherals
On-Board:Programmable Push-button, battery monitor, micro-USB battery charger, and LED
Memory:8MB NOR Flash memory – store up to 1M sensor data entries or use our calculate here to determine how long you can store your data.

The Most Powerful Software

Free MetaBase App on Android, Windows, or iOS

The MetaBase App imports your data via Bluetooth into the device of your choice, stores it, and optionally transfers it to our secure Cloud platform.

Use the App to configure the sensors at any frequency. Set the real time streaming or logging mode. And go!

You can also troubleshoot and upgrade the Firmware of your MMR.

Develop Your Own Apps

Use our developer tools to build your own App.

Develop Apps that leverage data from the MMR.

Our APIs support Android, iOS, Windows and Linux development. Platforms supported include Xcode, Android Studio and Visual Studio.

Our open-source APIs are available in Swift, C++, C#, Java, and Javascript. Additional documentation, tutorials, and free example Apps are available.

Your Data Anywhere

Easily access and analyze your raw data with our Cloud

View and manage your data on our secure Cloud platform; available for a monthly fee.

You can also download raw data in CSV format for easy processing and analysis in third party applications.

Your data is secured with encryption. One login means you can access your data any time, anywhere.

For developers, data can be downloaded in JSON format via our Javascript API layered on top of our RESTful interface.

Compare Sensor Offerings

Compare our different sensor products below:

SensorPCBAccGyroMagTempLightBaroHumFusionMemoryPower
MTHXXXXXX4MBreplaceable coin-cell
MMCXXXXXXX8MBreplaceable coin-cell
MMRXXXXXXX8MBrechargeable lipo

Achieve more with MMR

Each kit includes a board, case, battery, and wearable accessory. Additional accessories and bare PCBs are available on our store:

WRISTBAND EVAL KIT

$199$91.99

VELCRO SLEEVE EVAL KIT

$199$93.99

BELT CLIP EVAL KIT

$199$88.99

BODY ADHESIVE EVAL KIT

$199$89.99
