Interrupt driven step detection where each detected step triggers a data interrupt, cannot be used in conjunction with the IStepCounterDataProducer interface. More...

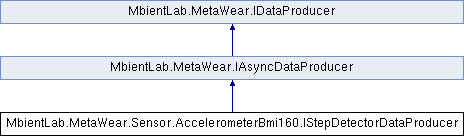

Inheritance diagram for MbientLab.MetaWear.Sensor.AccelerometerBmi160.IStepDetectorDataProducer:
Public Member Functions | |
| void | Configure (StepDetectorMode mode=StepDetectorMode.Normal) |
| Configure the step counter algorithm. Must be called to have the step algorithm function as a detector. More... | |
 Public Member Functions inherited from MbientLab.MetaWear.IAsyncDataProducer | |
| void | Start () |
| Begin data collection More... | |
| void | Stop () |
| End data collection More... | |
| Public Member Functions inherited from MbientLab.MetaWear.IDataProducer | |
| Task< IRoute > | AddRouteAsync (Action< IRouteComponent > builder) |
| Adds a data route to the producer More... | |
Detailed Description
Interrupt driven step detection where each detected step triggers a data interrupt, cannot be used in conjunction with the IStepCounterDataProducer interface.
Member Function Documentation
◆ Configure()
| void MbientLab.MetaWear.Sensor.AccelerometerBmi160.IStepDetectorDataProducer.Configure | ( | StepDetectorMode | mode = StepDetectorMode.Normal | ) |
Configure the step counter algorithm. Must be called to have the step algorithm function as a detector.
- Parameters
-
mode Sensitivity mode, defaults to StepDetectorMode.Normal
The documentation for this interface was generated from the following file:
- MetaWear/Sensor/IAccelerometerBmi160.cs
