MTH

Bluetooth to WiFi IoT Gateway

The MetaHub (MTH) is a Linux based development environment with Bluetooth, WiFi, computer power, and the ability to connect multiple Sensors at once.

The MTH comes with pre-loaded with our OS so you can get send commands to your MetaSensors, graph sensor data, setup automatic downloads and more.

Simple, Flexible, Connectivity

MTH offers a powerful and cost-effective solution for large-scale low-power wireless deployments.

Technical Specifications

Real-time monitoring & management of IoT sensors and devices. APIs for rich IoT application development.

Weight:
Ultra lightweight at just 3.1oz

Supports Multiple Sensors:
Add BLE-USB dongles to connect more MetaSensors to the Hub

Power:
Micro-USB power ensures the Hub works anywhere in the world

Splash Resistant Materials:
Unibody, neat, and dust-proof
Hard and durable plastic

Regulatory Compliance:
CE, FCC, IC, RoHS

Easy to Use:
Graph Sensor data live!

Plug-n-Play:
Set up the Apps and scripts to run specific commands on boot.

Small Form-factor:
PCB: 85.60mm x 56mm x 21mm
CASE: 94mm x 63mm x 31mm

Memory:
8GB or 16GB SD card can store millions and Sensor data entries

Data Transfer:
Bluetooth Low Energy Smart®

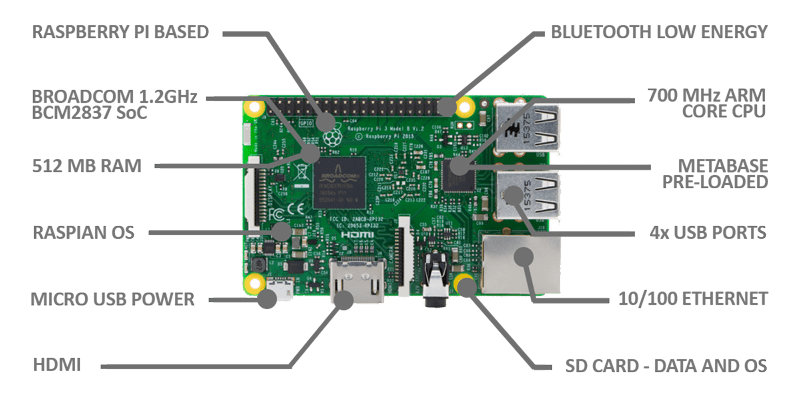

Board Specifications

The gateway offers higher throughput, more capacity, and less interference, while providing easy management.

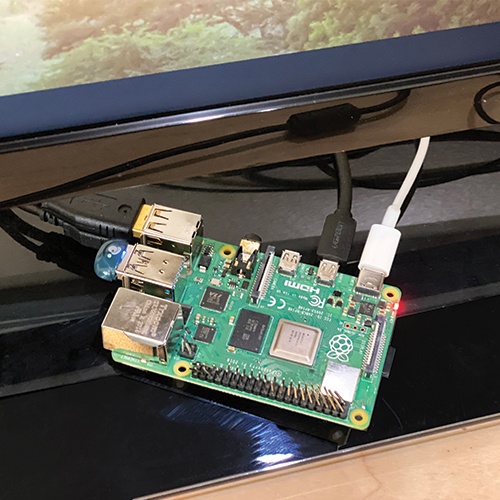

Raspberry Pi
CPU:Quad Core 1.2GHz Broadcom BCM2837 64bit CPU (some model 2835)
700 MHz ARM1176JZF-S core CPU
Audio:Broadcom VideoCore IV GPU
HDMI
Video:3.5mm Jack or Audio over HDMI
Memory:512MB RAM / 1GB RAM
Storage:SD/MMC/SDIO
Ethernet:10/100 Ethernet (RJ45)
I/Os:4 USB 2 ports
40-pin extended GPIO
Wireless:BCM43438 wireless LAN
Bluetooth Low Energy (BLE)
Computer
Usage:Plug in an LCD screen into the HDMI port, a keyboard and mouse into the USB port, power up via the micro-USB to AC adapter and use the MTH as a computer.
Peripherals
GPIOS8
UART1
I2C1
SPI1
POWER3.3V – 5V
GROUND0V
OS
micro SD Card:SanDisk 8GB or 16GB class 10
OS:Raspbian with MetaBase App
Power
Micro USB:5V @ 700 mA (up to 2.5A)

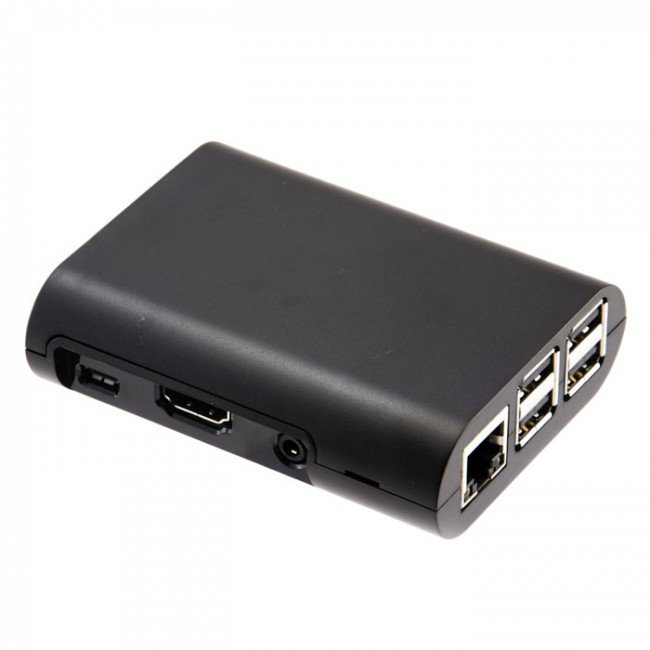

Case
ABS Plastic:Black
2 PCS:4 screws

The Most Powerful Software

Free MetaBase App on Android, Windows, or iOS

The MetaBase App imports your data via Bluetooth into the device of your choice, stores it, and optionally transfers it to our secure Cloud platform.

Use the App to configure the sensors at any frequency. Set the real time streaming or logging mode. And go!

You can also troubleshoot and upgrade the Firmware of your MTR.

Develop Your Own Apps

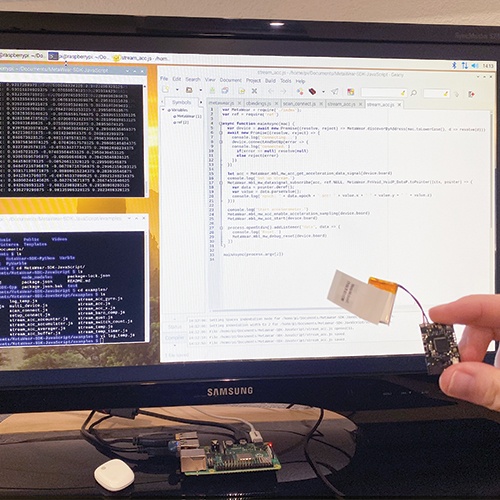

Use our developer tools to build your own App.

Develop Apps that leverage data from the MTR.

Our APIs support Android, iOS, Windows and Linux development. Platforms supported include Xcode, Android Studio and Visual Studio.

Our open-source APIs are available in Swift, C++, C#, Java, and Javascript. Additional documentation, tutorials, and free example Apps are available.

Your Data Anywhere

Easily access and analyze your raw data with our Cloud

View and manage your data on our secure Cloud platform; available for a monthly fee.

You can also download raw data in CSV format for easy processing and analysis in third party applications.

Your data is secured with encryption. One login means you can access your data any time, anywhere.

For developers, data can be downloaded in JSON format via our Javascript API layered on top of our RESTful interface.

Achieve more with MTH

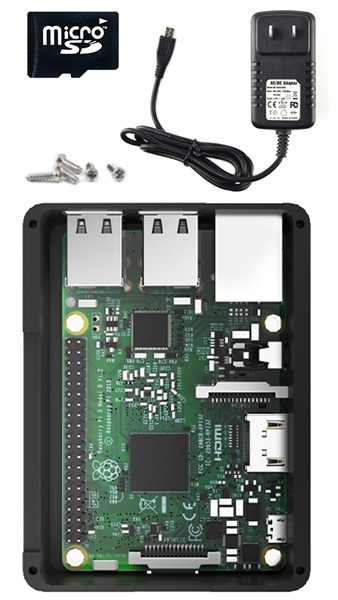

We recommend the bundle which includes two USB dongles, a power supply, a case, an SD card pre-loaded with software and a RaspberryPi board:

BLE-WIFI GATEWAY

$149$99.50

GATEWAY BUNDLE

$199$109.00

SPARE COIN BATTERY

$12$5.00

BLUETOOTH DONGLE

$19 – $10.00
