This buzzer provides audio signaling functions; generally used to emit sounds or alarm.
This will alert your user with audio noise feedback.

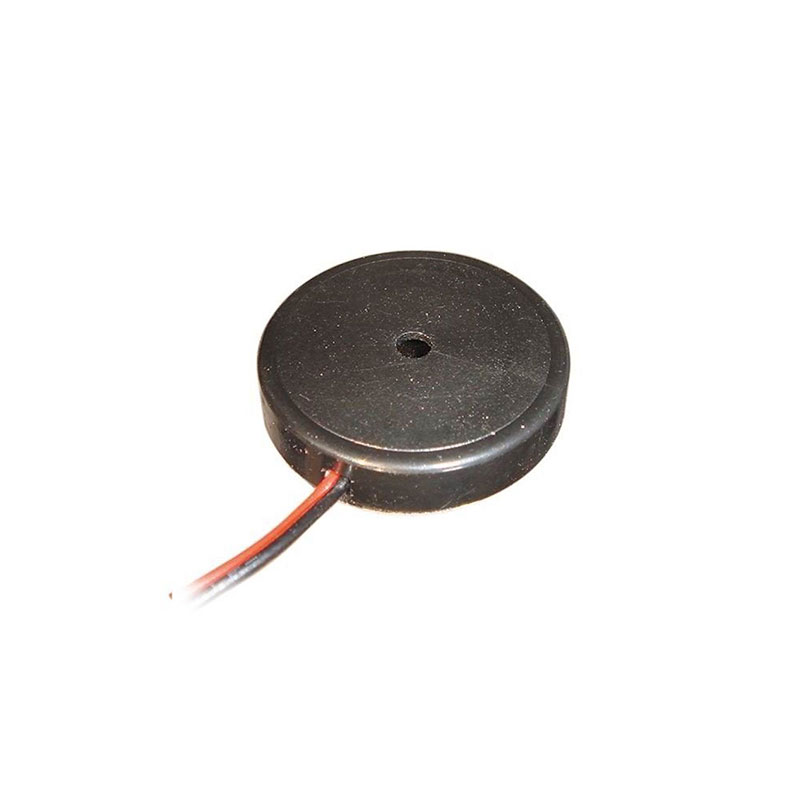

Audio Buzzer
$5.00
Out of stock
Out of stock
Description
WHAT’S INCLUDED:
- 1x 3V 4kHz audio buzzer
ABOUT THE PRODUCT:
- This buzzer is compact and lightweight.
- Buzzers are used today in an endless number of applications including medical, automotive, consumer, and industrial products which require audio feedback.
- The Buzzer module plays a 4kHz tone.
- The volume of the buzzer and the sound (frequency) cannot be adjusted.
- The plus and minus signs indicate the direction in which it operates (red/black wire).
- A parallel resistor of 1kOhms is required to operate.
RETURNS & WARRANTY:
- Limited warranty. See our terms.
- If you have issues with your order, please contact us at hello@mbientlab.com.
For all customers:
- You will be responsible for all the local taxes and custom duty
- Return shipping will be paid by the customers
Additional information
| Weight | 0.0625 lbs |
|---|---|
| Dimensions | 1 × 1 × 1 in |
| Shipping | – Ships in 2-3 business days when in stock |
| Voltage | – 3Vp-p – 16Vp-p |
| Current | – 5mA (max) |
| Resonant Frequency | – 4000Hz ± 500 |
| Sound Level | – 80dBA (min) |
| Capacitance | – 13000pF ± 30% |
| Dimensions | – 12mm diameter by 3mm in height |
