Skin Adhesive Kit for MMRL or MMS

$105.99$150.99

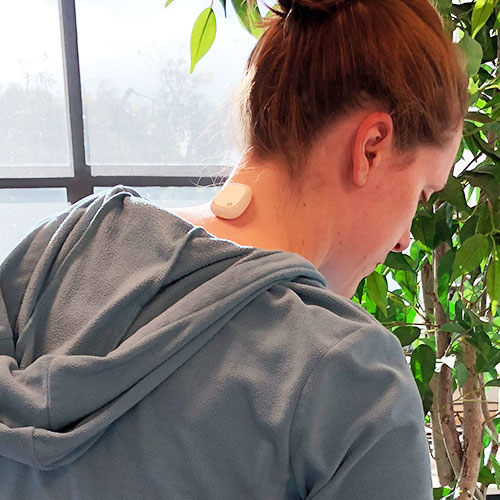

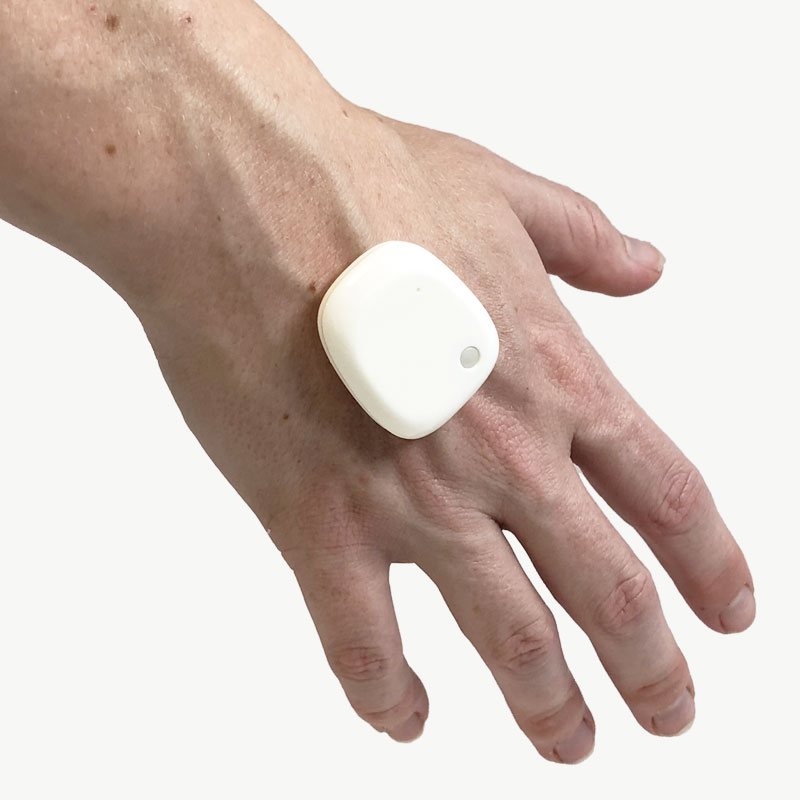

This clinical grade sensing solution is a skin adhesive device that provides recorded (logging) or real-time (streaming) sensor data:

BMI160 / BMI270 3-axis Accelerometer
BMI160 / BMI270 3-axis  Gyroscope
BMM150 3-axis Magnetometer
BOSCH 9-axis IMU Sensor Fusion
BMP280 Temperature | MMS ONLY
BMP280 Barometer/Pressure/Altimeter | MMS ONLY
LTR-329ALS Luminosity/Ambient Light | MMS ONLY

Get 50 adhesives in one pack until June 30th.

Captures continuous data for research including trials, therapy, sports, and fitness. BULK PRICING AVAILABLE. Choose your type below:

Clear
SKU: SORK-1 Category: Tags: , ,

The MetaSensor collects thousands of raw sensor data points that can be optionally stored in the device memory. All data is synced and downloaded to your PC, Tablet, Hub, or Smartphone via our free MetaBase App or Developer APIs (using Bluetooth).

WHAT’S INCLUDED:

  • 1x MetaMotionRL board (with optional vibration version MMRL+) OR
  • 1x MetaMotionS board (with optional vibration version MMS+)
  • 1x IP40 Plastic Case
  • 40x FDA-approved clinical grade double-sided adhesive tape
  • Exclusive access to the MetaBase app

The four Sensor Type choices are:

  • MetaMotionRL (MMRL) which is a Rectangular and micro USB Rechargeable MetaSensor
  • MetaMotionRL+ (MMRL+) which is the vibrating version of MMRL
  • MetaMotionS (MMS) which is a Rectangular and micro USB Rechargeable MetaSensor with 512MB NAND memory
  • MetaMotionS+ (MMS+) which is the vibrating version of MMS

ABOUT THE KIT:

This is the motion and gesture tracking platform and comes with sensor fusion ideal for health and medical applications. This sensor is ideal for logging or streaming sensor data.

The board comes with a IP40 white plastic case, and double-sided adhesive stickers.

The MMRL board comes in a very small rectangular form factor, 8MB of NOR FLASH memory and sensor fusion with 9 axis of motion sensing (3-axis accelerometer + 3-axis gyroscope + 3-axis magnetometer).

The MMS board comes in a very small rectangular form factor, 512MB of NAND FLASH memory, a light sensor, a temperature sensor, and sensor fusion with 10 axis of motion sensing (3-axis accelerometer + 3-axis gyroscope + 3-axis magnetometer + altimeter/barometer/pressure).

The sensor fusion combines the measurements from 3-axis gyroscope, 3-axis geomagnetic sensor and a 3-axis accelerometer, to provide a robust absolute orientation vector in form of Quaternion or Euler angles. The algorithm fuses the sensor raw data in an intelligent way to improve each sensors output. This includes algorithms for offset calibration of each sensor, monitoring of the calibration status and Kalman filter fusion to provide distortion-free and refined orientation vectors.

The board is powered by a 100mAH Lipo battery (rechargeable via micro USB).

There is an LED, GPIOs, and push button switch on the board. The board is based on the nRF52 SOC from Nordic built around a ARM® Cortex™ M4F CPU and Bluetooth Low Energy. The off board memory stores the sensor data on the MetaSensor to be retrieved at any time by your Device (Smartphone, Hub, Tablet or PC).

Sensor data is available:

  • as a CSV file on your Smartphone, Tablet, Computer or BLE Device (using the MetaBase App)
  • as an array in your own App code (using our Python/C++/C#/Java/Javascript/Swift APIs)

RETURNS & WARRANTY:

  • Limited warranty. See our terms.
  • If you have issues with your order, please contact us at hello@mbientlab.com.
  • Note: Sensor is not intended to diagnose, treat, mitigate, cure, or prevent any disease/condition.

For all customers:

  • You will be responsible for all the local taxes and custom duty
  • Return shipping will be paid by the customers

Sensors are designed in San Francisco, CA and assembled/manufactured in U.S.A, China and Korea.

Weight 0.25 lbs
Dimensions 3 × 2 × 1 in
Export and Compliance

– EU HTS: 8473.30.2000
– US HTS: 8473.30.1180
– Country of Origin/Manufacture: USA
– ECCN: EAR99

Shipping

– Ships in 2-3 business days when in stock
– Ships via UPS and USPS
– Packed with Lithium battery warning
– Packed in 3M ESD sensitive bags

MMRL / MMS PCB (w/ Battery)

– Length: 1.0in / 25.4mm
– Width: .625in / 15.875mm
– Height: 0.24in / 6mm
– Weight: 0.2oz

MMRL / MMS Case (w/ PCB)

– Dimensions: L: 1.42in / 36mm x W: 1.06in / 27mm x H: 0.39in / 10mm
– Weight: 0.2oz
– Description: White plastic. Water resistant. Button integrated. Snap together.

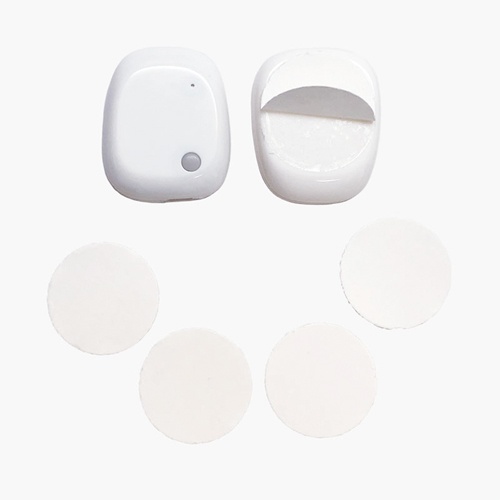

Adhesive

– Comes in sheets with peel off adhesive stickers
– .003” flexible clear polyethylene film
– The H-566 adhesive is non-cytotoxic, non-irritating and non-sensitizing, as defined by the ISO-10993 standard
– High tack acrylic with excellent long term adhesion to human skin
– EtO and Gamma Sterilization Compatible
– Backed with a 60 lb. semi-bleached white kraft polycoated layflat differential release liner

Mode

– Logging (data is saved in local memory) sensor
– Streaming (data is sent live to your device) ONLY sensor

Connectivity

– Bluetooth LE 4.2 – 2.4Ghz
– Up to 100ft of range – typical 10m
– Stream sensor Data from 1 Hz to 100 Hz
– Log sensor Data from 1 Hz to 400 Hz

Core

– Nordic nRF52 32-bit ARM® Cortex™ M4F CPU
– 512kB flash + 64kB RAM
– RGB LED
– Micro push-button
– I2C + 4 GPIOs

MMRL Logging / Memory

– Streaming AND Logging Sensor
– 8MB NOR FLASH – Off board
– 100K – 500K sensor data entries with timestamps

MMS Logging / Memory

– Streaming AND Logging Sensor
– 512MB NAND FLASH – Off board
– 100M sensor data entries with timestamps

Battery

– 100mAH 4.7V Li-ion Lipo battery – rechargeable

Accelerometer

– Accelerometer (A): 16 bit
±2g: 16384LSB/g
±4g: 8192LSB/g
±8g: 4096LSB/g
±16g: 2048LSB/g
Noise density (typ.): 180 μg/√Hz

Gyroscope

– Gyroscope (G): 16bit
±125°/s: 262.4 LSB/°/s
±250°/s: 131.2 LSB/°/s
±500°/s: 65.6 LSB/°/s
±1000°/s: 32.8 LSB/°/s
±2000°/s: 16.4 LSB/°/s
Noise density (typ.): 0.008 °/s/√Hz

Magnetometer

– Magnetometer(T): 16bit
±1300μT (x,y-axis) range
±2500μT (z-axis) range
Resolution: 0.3μT

Sensor Fusion

– Advanced 9-axis sensor fusion algorithms
– Fast in-use background calibration of all sensors and calibration monitor
– Enhanced magnetic distortion detection and suppression
– Real-time motion tracking due to built-in group delay compensation
– Gyroscope drift cancellation
– Supports various power modes for switching on/off sensors and algorithm modules

Pressure | MMS ONLY

– Barometer(Pa): 16bit
300…1100 hPa
Resolution: 0.01 hPa (< 10 cm if calibrated)

Temperature | MMS ONLY

– Thermistor (Degrees C) and Barometer: 16bit
±0.5°C, Accuracy
±0.1°C Resolution
-40…85°C Range

Ambient Light | MMS ONLY

– Luminosity (Lux): 16bit
.01…64k lux
