MMR+ – MetaMotionR+

$84.99$91.99

In stock

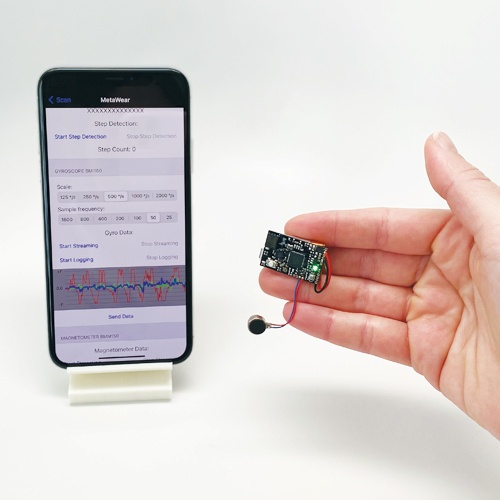

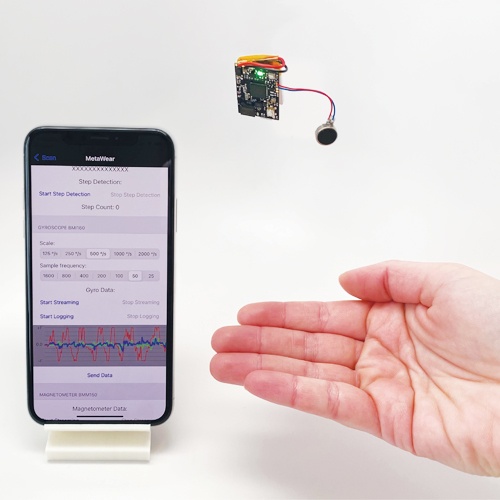

The MMR+ sensing solution is a wearable device that includes the following sensors:

BMI160 6-axis Accelerometer + Gyroscope
BMP280 Temperature
BMP280 Barometer/Pressure/Altimeter
LTR-329ALS Luminosity/Ambient Light
BMM150 3-axis Magnetometer
BOSCH 9-axis Sensor Fusion
8MB Memory
Lithium-ion Rechargeable battery
Vibrating Coin motor
and also Bluetooth Low Energy, CPU, button, LED, and GPIOs

Stream (live) or log (record) raw sensor data. Access the data on your phone, hub, tablet, computer, server, or the cloud.

Captures continuous activity data for robotics, automation, sports, motion and gesture tracking.

BULK PRICING AVAILABLE and automatically applied at checkout.

SKU: MMR-1 Category: Tags: , ,

PLEASE NOTE THE MAGNETOMETER MAY BE AFFECTED BY THE MAGNETIC FIELDS OF THE COIN MOTOR.

The MetaSensor collects thousands of raw sensor data points that can be optionally stored in the device memory. All data is synced and downloaded to your MetaCloud account, PC, Tablet, Hub, or Smartphone via our free MetaBase App or Developer APIs (using Bluetooth).

WHAT’S INCLUDED:

  • 1x MetaMotionR board
  • 1x coin vibration motor
  • 1x plastic white case (optional)
  • 1x USB rechargeable battery

Great motion and gesture tracking platform that comes with sensor fusion ideal for medical and health applications. This is our motion, health, fitness, and gaming sensor solution.

DOWNLOAD DOCUMENTATION:

METABASE APP AVAILABLE ON WINDOWS, iOS AND ANDROID:



DEVELOP YOUR OWN APP WITH OUR APIs:

ABOUT THE PCB:

MetaMotionR is ideal for logging and streaming sensor data. Record raw sensor data via Bluetooth at up to 400Hz. Stream raw sensor data at up to 100Hz. Download the data and access it as a CSV file on your phone, hub, tablet, computer, server, or the cloud or as a JSON file using our APIs.

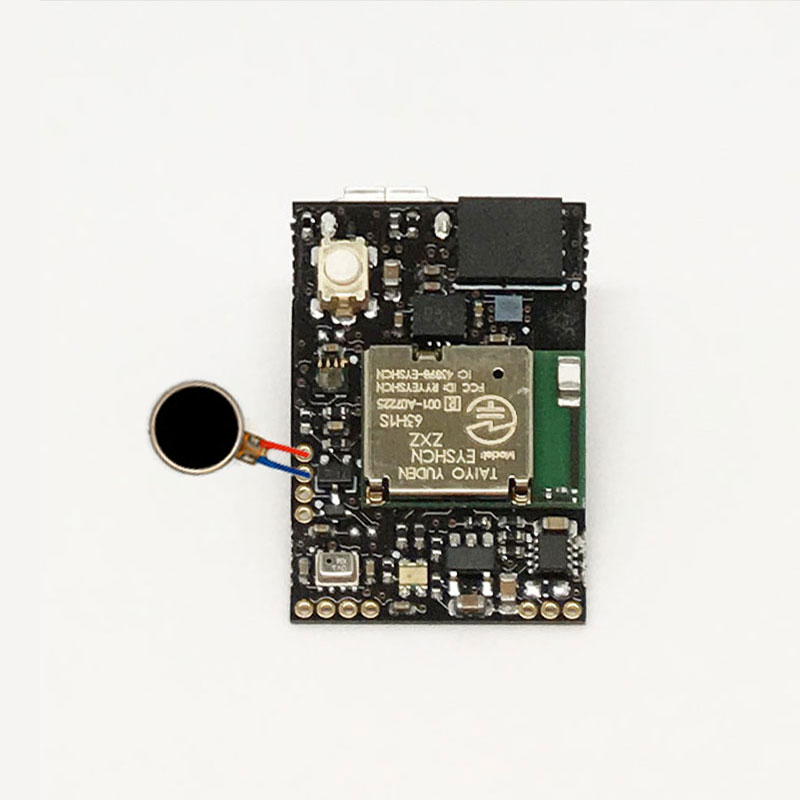

The board comes in a very small rectangular form factor, 8MB of NOR FLASH memory, a light sensor, temperature sensor, and sensor fusion with 10 axis of motion sensing (3-axis accelerometer + 3-axis gyroscope + 3-axis magnetometer + altimeter/barometer/pressure).

The sensor fusion combines the measurements from 3-axis gyroscope, 3-axis geomagnetic sensor and a 3-axis accelerometer, to provide a robust absolute orientation vector in form of Quaternion or Euler angles. The algorithm fuses the sensor raw data in an intelligent way to improve each sensors output. This includes algorithms for offset calibration of each sensor, monitoring of the calibration status and Kalman filter fusion to provide distortion-free and refined orientation vectors.

There is a coin vibration motor added to give haptic feedback to users as a gentle vibration (similar to a smartphone call alert).

There is an LED, GPIOs, and push button switch on the board. The board is powered by a 60mAH lithium-ion 3.7V batteryThe board is based on the nRF52 SOC from Nordic built around a ARM® Cortex™ M4F CPU and Bluetooth Low Energy. The off board memory stores the sensor data on the MetaSensor to be retrieved at any time by your Device (Smartphone, Hub, Tablet or PC).

Sensor data is available:

  • as a CSV file on your Smartphone, Tablet, Computer or BLE Device (using the MetaBase App)
  • as a CSV file in the MetaCloud (using the MetaBase App)
  • as a CSV file on the MetaHub (using the MetaBase App)
  • as a JSON array in your own App code (using our Python/C++/C#/Java/Javascript/Swift APIs)

RETURNS & WARRANTY:

  • Limited warranty. See our terms.
  • If you have issues with your order, please contact us at hello@mbientlab.com.
  • Note: Sensor is not intended to diagnose, treat, mitigate, cure, or prevent any disease/condition.

For all customers:

  • You will be responsible for all the local taxes and custom duty
  • Return shipping will be paid by the customers

Sensors are designed in San Francisco, CA and assembled/manufactured in U.S.A, China and Korea.

Export and Compliance

– EU HTS: 8473.30.2000
– US HTS: 8473.30.1180
– Country of Origin/Manufacture: USA
– ECCN: EAR99

Shipping

– Ships in 2-3 business days when in stock
– Ships via UPS and USPS
– Packed with Lithium battery warning
– Packed in 3M ESD sensitive bags

Dimensions

– White plastic case. IP40 Water resistant. Snapable
– Dimensions w/ case: L: 1.42in / 36mm x W: 1.06in / 27mm x H: 0.39in / 10mm
– Dimensions w/out case: L: 1.13in / 29mm x W: 0.7in / 18mm x H: 0.24in / 6mm

Battery

– 60mAH micro-USB rechargeable lipo battery (included)

Weight

– Weight w/ case: 0.3oz
– Weight w/out case: 0.1-0.2oz

Connectivity

– Bluetooth LE 4.2 – 2.4Ghz
– Up to 100ft of range – typical 10m
– Stream sensor Data from 1 Hz to 100 Hz
– Log sensor Data from 1 Hz to 400 Hz

Compatibility

– iPad 3rd generation and higher
– iPhone 5th generation and higher
– Android 4.4 and higher with Bluetooth Low Energy Technology
– Windows 10 and higher

Mode

– Logging (data is saved in local memory) sensor
– Streaming (data is sent live to your device) sensor
– See https://mbientlab.com/tutorials/Calculator.html

Core

– Nordic nRF52 32-bit ARM® Cortex™ M4F CPU
– 512kB flash + 64kB RAM
– RGB LED
– Micro push-button
– I2C + 4 GPIOs + 1 PWM (high current driver) to add more sensors

Memory

– Streaming AND Logging Sensor
– 8MB NOR FLASH – Off board
– 100K – 500K sensor data entries with timestamps

Accelerometer

Accelerometer (A): 16 bit
±2g: 16384LSB/g
±4g: 8192LSB/g
±8g: 4096LSB/g
±16g: 2048LSB/g
Noise density (typ.): 180 μg/√Hz

Gyroscope

Gyroscope (G): 16bit
±125°/s: 262.4 LSB/°/s
±250°/s: 131.2 LSB/°/s
±500°/s: 65.6 LSB/°/s
±1000°/s: 32.8 LSB/°/s
±2000°/s: 16.4 LSB/°/s
Noise density (typ.): 0.008 °/s/√Hz

Magnetometer

Magnetometer(T): 16bit
±1300μT (x,y-axis) range
±2500μT (z-axis) range
Resolution: 0.3μT

Pressure

Barometer(Pa): 16bit
300…1100 hPa
Resolution: 0.01 hPa (< 10 cm if calibrated)

Temperature

Thermistor (Degrees C) and Barometer: 16bit
±0.5°C, Accuracy
±0.1°C Resolution
-40…85°C Range

Ambient Light

Luminosity (Lux): 16bit
.01…64k lux

Sensor Fusion

– Advanced 9-axis sensor fusion algorithms
– Fast in-use background calibration of all sensors and calibration monitor
– Enhanced magnetic distortion detection and suppression
– Real-time motion tracking due to built-in group delay compensation
– Gyroscope drift cancellation
– Supports various power modes for switching on/off sensors and algorithm modules

Coin motor

– coin vibration motor, also known as shaftless or pancake vibrator motor
– 10mm diameters
– Rated voltage: 3 VDC
– Operating voltage: 2.7 VDC to 3.3 VDC
– Rated current: 100 mA maximum
– great fo light-weight wearable devices
– best for any light-weight device requiring a silent alert or haptic feedback
– vibration strength is not variable
– vibration timing is variable
