BLE to USB Dongle

$7.00 – $16.90

In stock (can be backordered)

Ultra-Mini Bluetooth 4.0 USB Dongle Adapter to connect to your MetaSensor.

Adds Bluetooth support to Windows or Linux computers that don’t already have it. Adds additional Bluetooth support to connect to multiple MetaSensors simultaneously on the MetaHub Gateway.

Bluetooth 4.0 allows connection with the Bluetooth Low Energy (“BLE” or “Bluetooth Smart”) MetaSensor devices.

Please choose your operating system below. MacOS is NOT SUPPORTED.

Clear selection
SKU: MBLEUSB Category: Tags: , ,

Description

WHAT’S INCLUDED:

  • 1x Bluetooth to USB Dongle

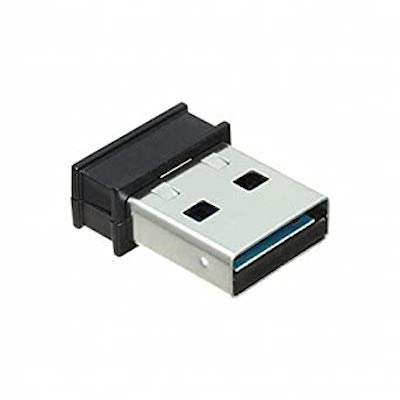

Windows: Silicon Labs BLE USB Dongle / Bluetooth Modules (802.15.1), MFG Part No: BLED112-V1

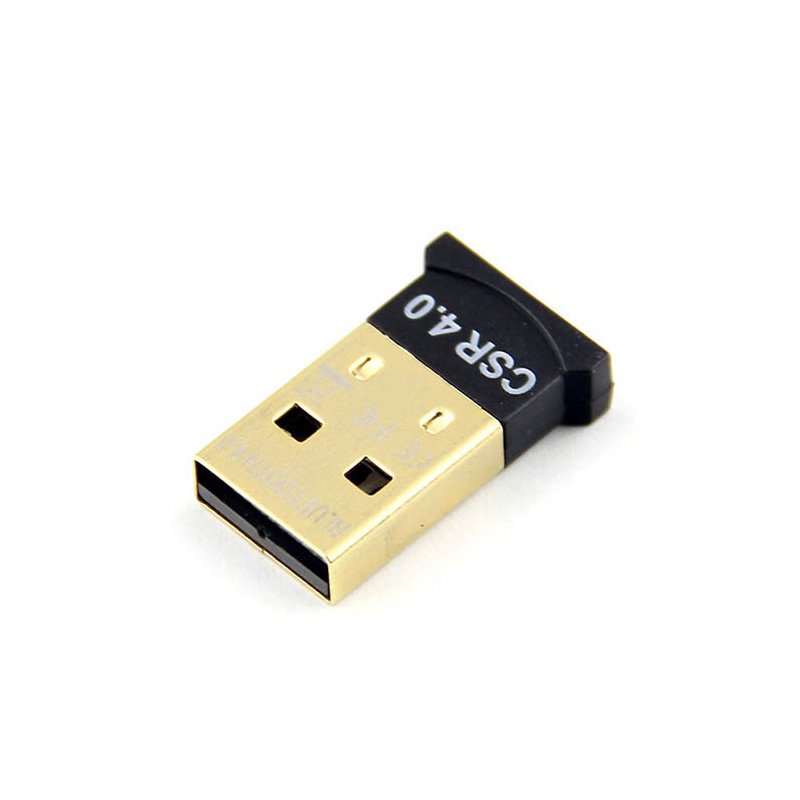

Linux: CSR 4.0 BLE USB Dongle / Bluetooth Adapter (802.15.1), MFG Part No: CSR4.0

ABOUT THE PRODUCT:

  • The Bluetooth 4.0 USB Adapter lets you communicate wirelessly with MetaSensors.
  • Designed for maximum compatibility, small size, and low power.
  • This Bluetooth 4.0 adapter upgrades Windows and Linux PCs with the latest Bluetooth 4.0 support.
  • This adapter is highly portable due to its petite dimensions. It seamlessly gets plugged into a computer/laptop without blocking surrounding USB ports.
  • Transforms any computer with a USB port to a Bluetooth enabled computer.
  • Built with the latest Bluetooth specification v4.0 Class 2.
  • It works with other Bluetooth devices within approximately 10m (30 foot) radius.
  • Depending on environmental factors, BLE supports transfer rates up to 3 Mbps.
  • Supports Linux and Windows
  • Does NOT add Bluetooth Low Energy (Bluetooth 4.0) capability to Windows 7 and earlier. Please note that Windows 8 Bluetooth is not officially supported.
  • Does NOT work for Apple devices. Does not work for tvOS, macOS, iOS.
  • Works with all Raspberry Pi models with Raspbian or Ubuntu Mate, including the new Raspberry Pi Zero. (Does not work with Windows IoT core on the Raspberry Pi). Works well with Ubuntu.
  • Linux computers may need additional software and setup, and may not support all Bluetooth profiles. Specialized or minimal Linux versions may not have Bluetooth support built into the kernel, and might not work without significant configuration. Many Linux distributions do not use the latest versions of BlueZ, which can create compatibility problems with devices unless those components, and the kernel, are updated.

RETURNS & WARRANTY:

  • Limited warranty. See our terms.
  • If you have issues with your order, please contact us at hello@mbientlab.com.

For all customers:

  • You will be responsible for all the local taxes and custom duty
  • Return shipping will be paid by the customers

Additional information

Shipping

– Ships in 2-3 business days when in stock
– Ships via UPS and USPS

Bluetooth

– V4.0 compliant (Bluetooth 4.0 standard)
– Frequency band: 2.402g-2.480g
– RF Tx Power: +6dBm(Class П)

Operating System

– Supports Windows 10 and Linux (MAC IS NOT SUPPORTED)
– Linux version is CSR
– Windows version is BlueGiga (SiliconLabs)

Range

– 10m-20m (some models up to 50m)

Current

– Working Current: 22mA typical
– Standby Current: 0.4uA

Temperature

– -20ºC to +70ºC

Supply Voltage

– 5V DC(Max5.75V)

Specification

– UL, CE. RoHS, Inmetro, NCC

HS Code

– 85176292
