MTR – MetaTracker

$60.99

The MTR sensing solution is a mountable device that includes the following sensors:

BMI160 6-axis Accelerometer + Gyroscope
BME280 Barometer/Pressure/Altimeter
BME280 Humidity
BME280 Temperature
LTR-329ALS Luminosity/Ambient Light
NCP15XH103F03RC Thermistor
4MB Memory
CR2450 Coin-cell Battery
and also Bluetooth Low Energy, Battery, CPU, button, LED, and GPIOs

Stream (live) or log (record) raw sensor data. Access the data on your phone, hub, tablet, computer, or server.

Captures continuous activity data for personnel monitoring, facility management, cargo and asset tracking.

BULK PRICING AVAILABLE and automatically applied at checkout.

SKU: MTRK Category: Tags: , ,

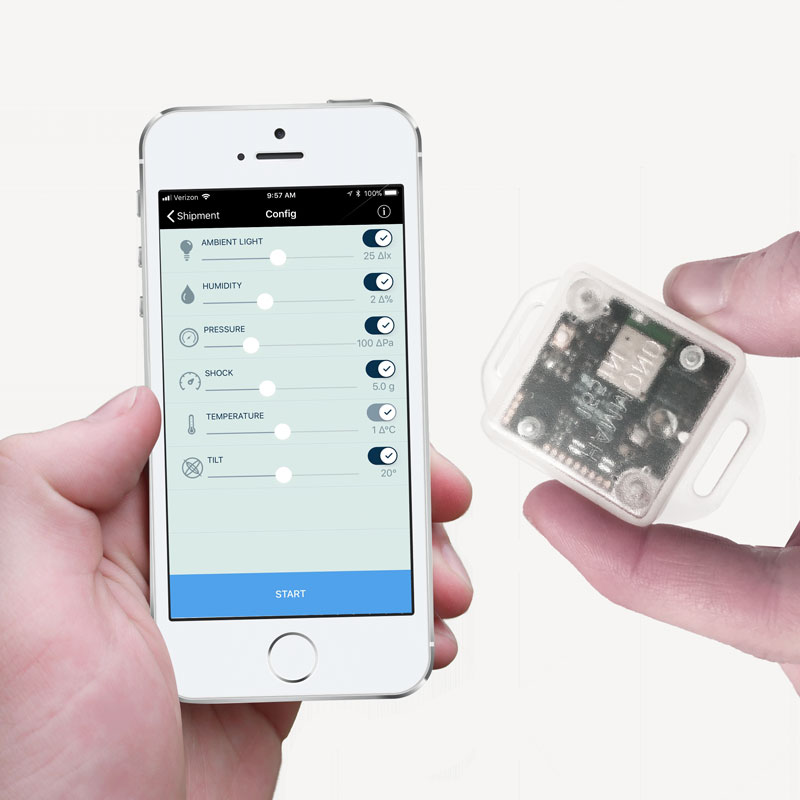

The MetaSensor collects thousands of raw sensor data points that can be optionally stored in the device memory. All data is synced and downloaded to your PC, Tablet, Hub, or Smartphone via our free MetaBase App or Developer APIs (using Bluetooth).

WHAT’S INCLUDED:

  • 1x MetaTracker board
  • 1x CR2450 Coin cell battery
  • 1x IP54 Case with 4x Screws (optional)
  • Exclusive access to the MetaBase app

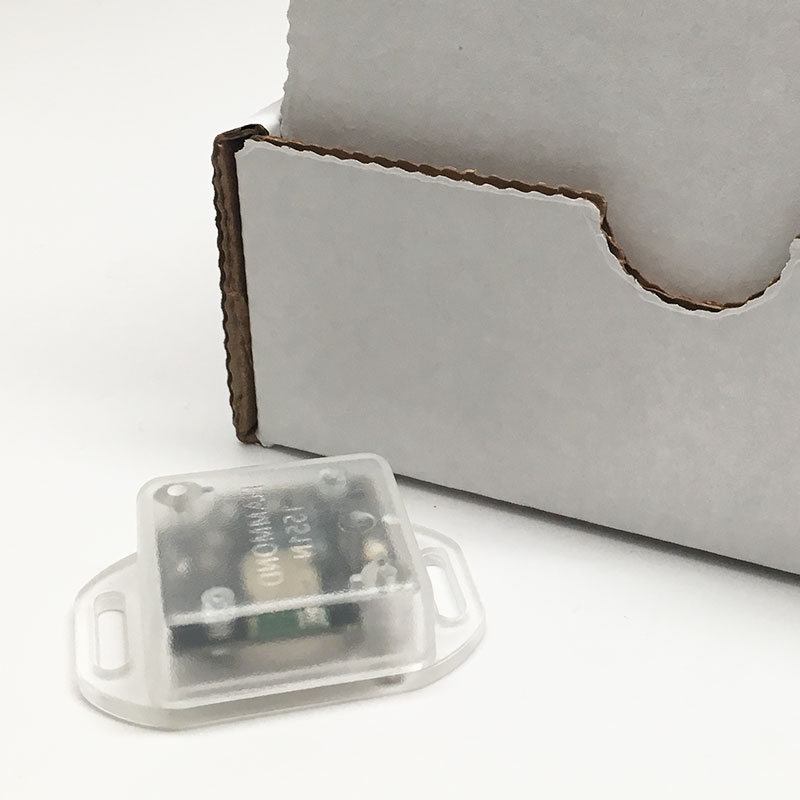

This cargo and asset tracking device is great for tracking packages, supply chains, weather, and cold storage such as pharmaceutical goods. The device can be mounted on the wall or dropped into a package with ease.

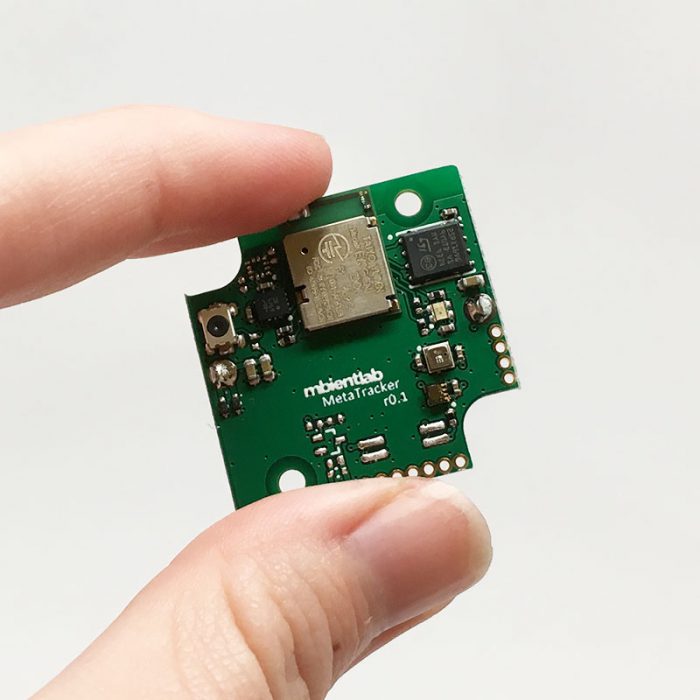

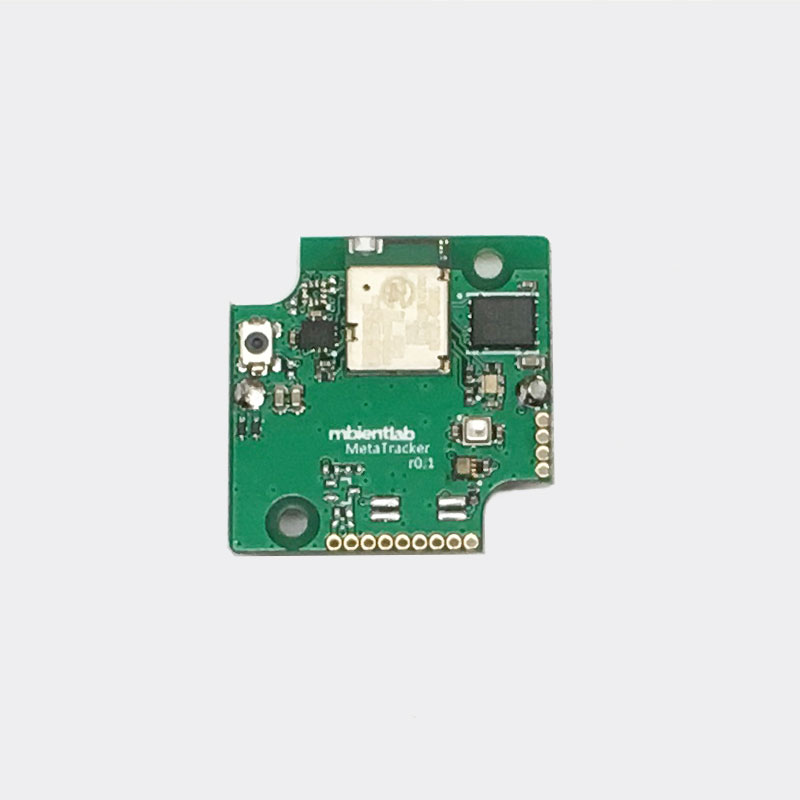

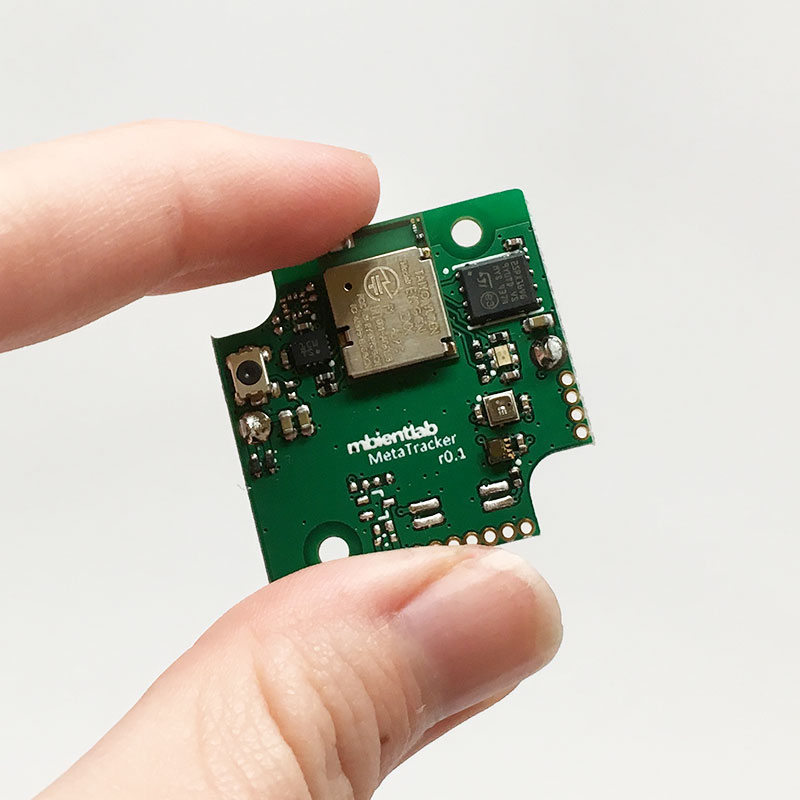

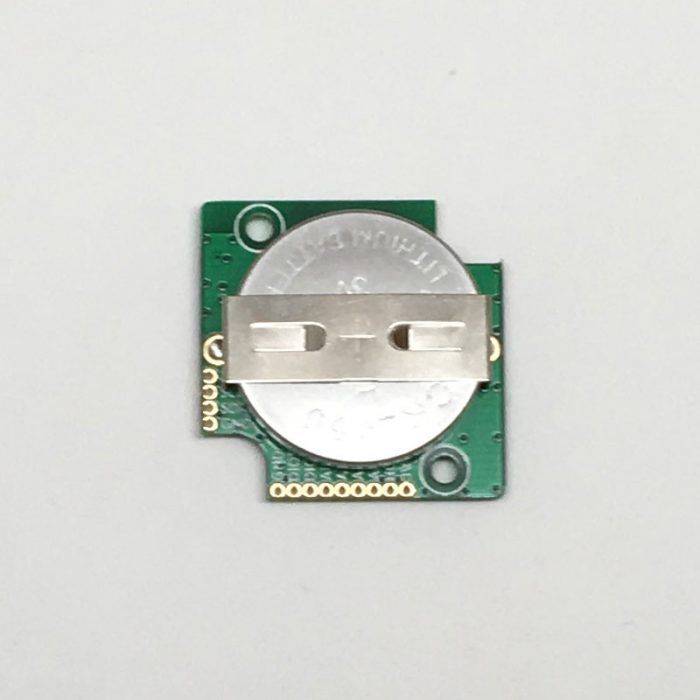

ABOUT THE PCB:

MetaTracker is the cargo and asset tracking platform and comes with motion and environmental sensors ideal for health and medical applications. This sensor is ideal for logging or streaming sensor data.

The board comes with a IP54 white plastic case (if you choose PCB + Case as your option).

The board comes in a very small round form factor, 4MB of NOR FLASH memory and 6 axis of motion sensing (3-axis accelerometer + 3-axis gyroscope) as well as environmental sensing (light+ humidity + barometer/altimeter/pressure).

The board is powered by a CR2450 coin cell battery (replaceable).

There is an LED, GPIOs, and push button switch on the board. The board is based on the nRF51 SOC from Nordic built around a ARM® Cortex™ M0 CPU and Bluetooth Low Energy. The off board memory stores the sensor data on the MetaSensor to be retrieved at any time by your Device (Smartphone, Hub, Tablet or PC).

Sensor data is available:

  • as a CSV file on your Smartphone, Tablet, Computer or BLE Device (using the MetaBase App)
  • as an array in your own App code (using our Python/C++/C#/Java/Javascript/Swift APIs)

RETURNS & WARRANTY:

  • Limited warranty. See our terms.
  • If you have issues with your order, please contact us at hello@mbientlab.com.
  • Note: Sensor is not intended to diagnose, treat, mitigate, cure, or prevent any disease/condition.

For all customers:

  • You will be responsible for all the local taxes and custom duty
  • Return shipping will be paid by the customers

Sensors are designed in San Francisco, CA and assembled/manufactured in U.S.A, China and Korea.

Export and Compliance

– EU HTS: 8473.30.2000
– US HTS: 8473.30.1180
– Country of Origin/Manufacture: USA
– ECCN: EAR99

Shipping

– Ships in 2-3 business days when in stock
– Ships via UPS and USPS
– Packed with Lithium battery warning

Dimensions

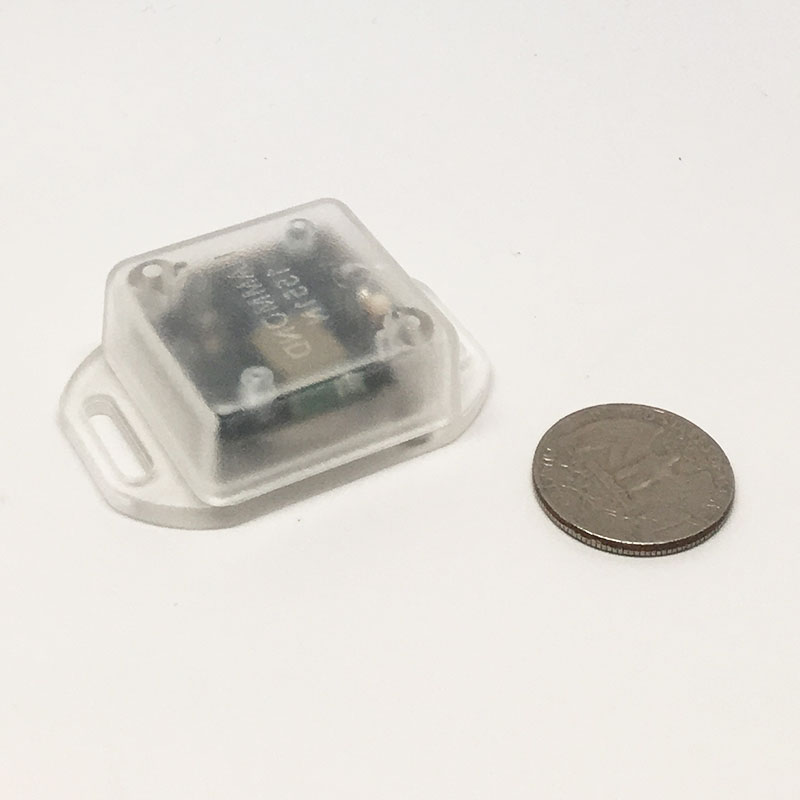

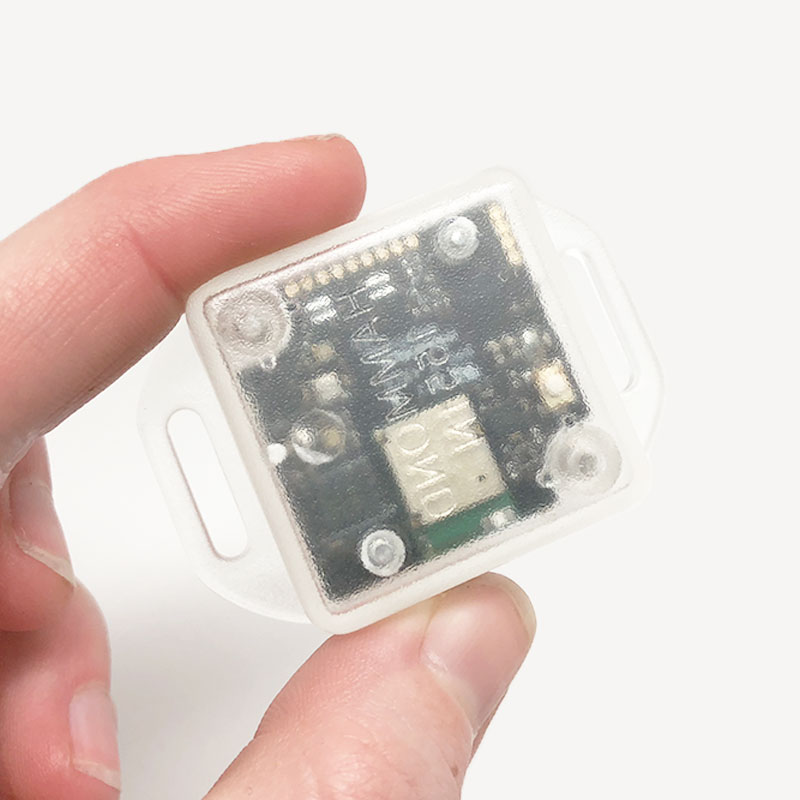

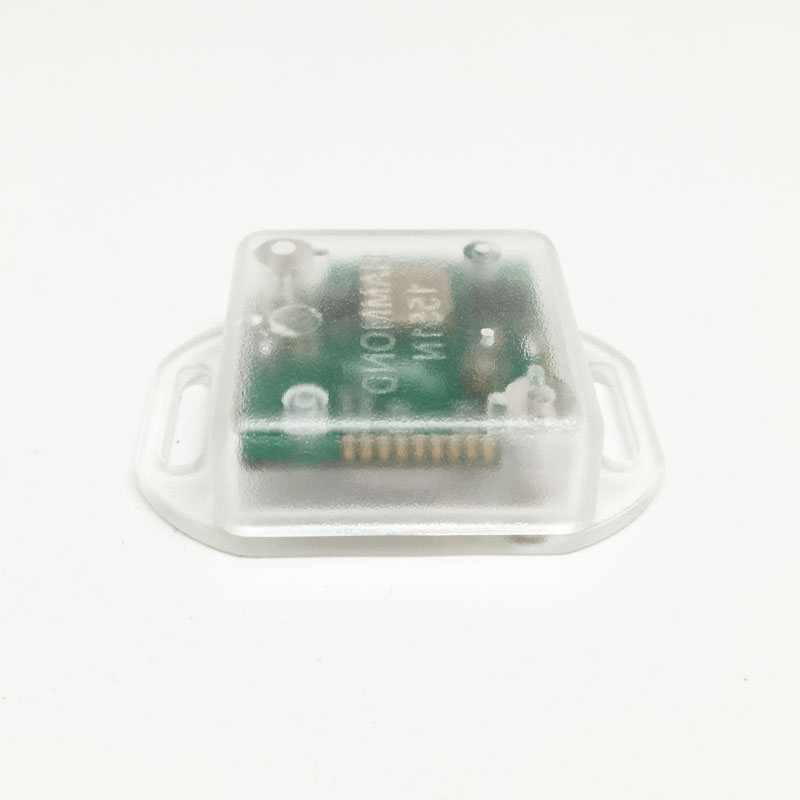

– Transparent plastic case. IP54 Water resistant. 4 screws. Mountable
– Dimensions w/ case: L: 2.3in / 52mm x W: 1.39in / 35mm x H: 0.59in / 15mm
– Dimensions w/out case: L: 2.3in / 52mm x W: 1.39in / 35mm x H: 0.19in / 5mm

Battery

– 600mAh CR2450 Coin cell battery – not rechargeable (included)

Weight

– Weight w/ case: 0.7oz
– Weight w/out case: 0.2oz

Connectivity

– Bluetooth LE 4.0 – 2.4Ghz
– Up to 100ft of range – typical 10m – 30m
– Free MetaBase App to download sensor data
– Free developer tools to develop your own App

Compatibility

– iPad 3rd generation and higher
– iPhone 5th generation and higher
– Android 4.4 and higher with Bluetooth Low Energy Technology
– Windows 10 and higher

Mode

– Streaming via Bluetooth Low Energy at up to 100Hz
– Logging in memory up to 250K sensor samples at up to 800Hz
– See https://mbientlab.com/tutorials/Calculator.html

Core

– Nordic nRF51822 32-bit ARM® Cortex™ M0 CPU
– 256kB/128kB flash + 32kB/16kB RAM
– RGB LED
– Micro push-button
– 2MB external NOR Flash memory

Memory

– Streaming AND Logging Sensor
– 4MB NOR FLASH – Off board
– 100K – 250K sensor data entries with timestamps

Accelerometer

– Accelerometer (A): 16 bit
±2g: 16384LSB/g
±4g: 8192LSB/g
±8g: 4096LSB/g
±16g: 2048LSB/g
Noise density (typ.): 180 μg/√Hz

Gyroscope

– Gyroscope (G): 16bit
±125°/s: 262.4 LSB/°/s
±250°/s: 131.2 LSB/°/s
±500°/s: 65.6 LSB/°/s
±1000°/s: 32.8 LSB/°/s
±2000°/s: 16.4 LSB/°/s
Noise density (typ.): 0.008 °/s/√Hz

Pressure

– Barometer(Pa): 16bit
300…1100 hPa
Resolution: 0.01 hPa (< 10 cm if calibrated)

Humidity

– Barometer(%): 16bit
0…100 %
Resolution: ±3 % relative humidity accuracy tolerance

Ambient Light

– Luminosity (Lux): 16bit
.01…64k lux

Temperature

– Thermistor (Degrees C) and Barometer: 16bit
±0.5°C, Accuracy
±0.1°C Resolution
-40…85°C Range
